Introduction - Social Distancing Wearable

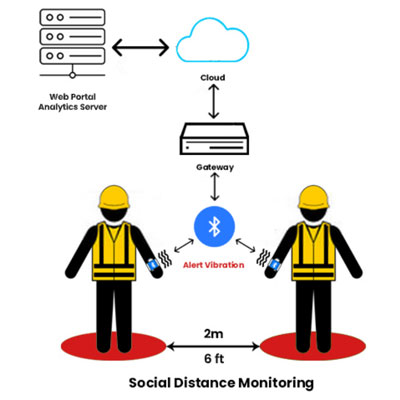

ANTARA is a wearable device for tracking social distancing between employees in factories, offices and public facilities. It sends real-time local alerts and records information on a server for reporting and contact tracing. This end-to-end IoT solution is designed for safety & security of people working in indoor commercial facilities in the post-Covid world.

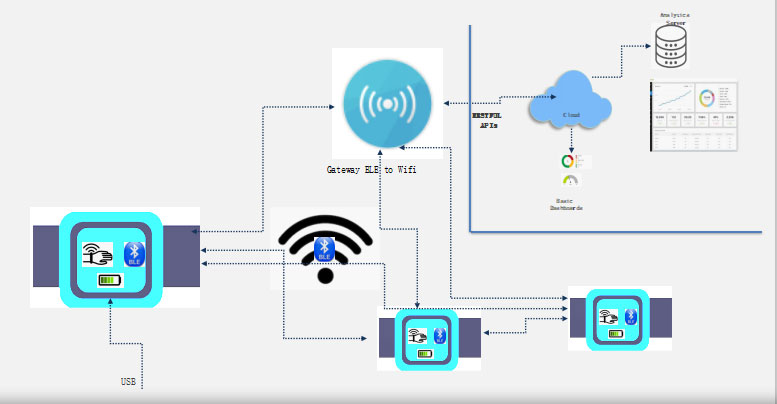

ANTARA uses Bluetooth Low Energy (BLE), sensors and other technologies. Technosphere’s Gateway (ANTARAGA) complements Antara to send the information to server for Contact Tracing.
- For social distancing alert and contact tracing and Evacuation
- Haptic and LED alert
- Create a log of other wearable : ID , duration and distance of contact, Location
- Uploading the data to a cloud server through BLE gateway or a Mobile Phone
- Optional Temperature sensor to measure Body Temperature
- Location sensing feature for Hazardous area
- BLE Controller for Distance sensing & upload logs
- Haptic Feedback
- Li-Ion Rechargeable Battery
- Charging Circuit
- Device is a wearable to be worn on the wrist of the person to be monitored
- Device communicates with other wearables and the Gateways via BLE
- Maximum number of log items – 50
- Ability to configure the distance for sensing Social Distancing violation
- LED indication for Low Battery
- Device will monitors the following parameters
- Frequency of monitoring – once every second
- Proximity of other Wearable of same type within the configured range
- If violation, then Turn on the Haptic Feedback for 3 seconds
- Battery Life
- If battery voltage is low, sends different Haptic Feedback (eg: 1 second duration) – frequency to be every 5 minutes
- Device will send to Server through Gateway or Phone application
- Time Stamp when distance was violated
- Device ID which was near the wearable
- Battery Level
Contact Now
Parameter | Detail |
Sensors | Distance using BLE RSSI, Temperature |
Communication | BLE 4.x |
Product size (without straps) | 50mm dia, 13mm thick |
Battery | 3.7V, Li-Poly, 350 mAH |
Battery life expectancy | 48 hours |
Battery charging time | 3 hours, USB charging |
Feedback | ERM Vibration Motor, 3V |
Low Battery Indication | LED Indication |
Operating conditions | 0 to 40 DegC, 10-90% RH |
Parameter | Detail |
Communication with sensors | BLE |
Communication with Server | Wifi |
Product size | 110x130x30mm |
Indication | Power LED, Wifi Activity, Battery low |
Power Input | 12-17V DC input, 2A |
Battery (Backup) | 7.4V, Li-Ion, 2.6AH |
Battery life Run-time | 8 Hours |
Battery charging time to full charge | 5 hours |
Mounting | Wall-mount with Flange |
In-Depth Understanding Of IoT Ecosystem
- Technosphere has lived through the evolution of IoT right from 2009 and provided solutions from Concept through Certifications to mass manufature
- Various solutions for Industrial, Energy, Retail, Home and Enterprise has been implemented successfully by Technosphere.
WhizBlox, An Industrial Grade IOT Hub
- Robust for deployment and can be optimized for various use cases, with different sensors and wireless technologies, keeping it modular
Very Relevant And Extensive Experience
- Industry Safety Wearable
- Commercial Wearable
- BLE, 4G, GPS wireless technologies
- Miniature components, design for manufacture, testability and Value Engineering
- Knowledge and handson experience in full product life-cycle upto mass production
Hardware
- Complex Multi-layer PCBs
- Miniature components – BGA, Flip Chip, 0201 discrete
- High Speed Design
- Flex and Flex Rigid PCBs, Analog – Audio, ADC, DAC
- RF : Chip level , PCB antenna
- 8/16/32 bit Controllers and Processors
- Microchip (PIC) / 8051 / Atmel (AVR),TI (MSP430)
- ST Micro : STM32
- ARM uP : TI (AM335x), Freescale : Kinetis
- MIPS uP
Firmware
- Bare metal Coding
- RTOS (Real Time Operating Systems)
- Embedded Linux
- Device Drivers
- Board Support Packages
- Diagnostics Tools
Compliance
- FCC / CE
- EIRP, Radiation testing
- Global RF Power
- Calibration validation
Relationship With Several Test Laboratories
- UL
- TUV
- ETDC
Sensors
- Temperature/Humidity
- Infrared / UV
- Contact Image Sensors
- Gas Sensors
- Vibration sensors and many more…
Peripherals
- Display Units
- Input Devices
- Output Devices
- Thermal Printers
- Motor Control and more…
Business Challenge: Need of a workplace safety wearable which can keep track of workers health key vitals, provide real time critical health data and reduce workplace accidents.
Solution Features:
- BLE
- LoRa
Solution Offered:
- Monitors critical health vitals as body temperature, heart rate etc
- Real time critical health data
- Real time Location Sensing
- Enhances worker safety
- Provides real time alerts
- Prevents workplace accidents
